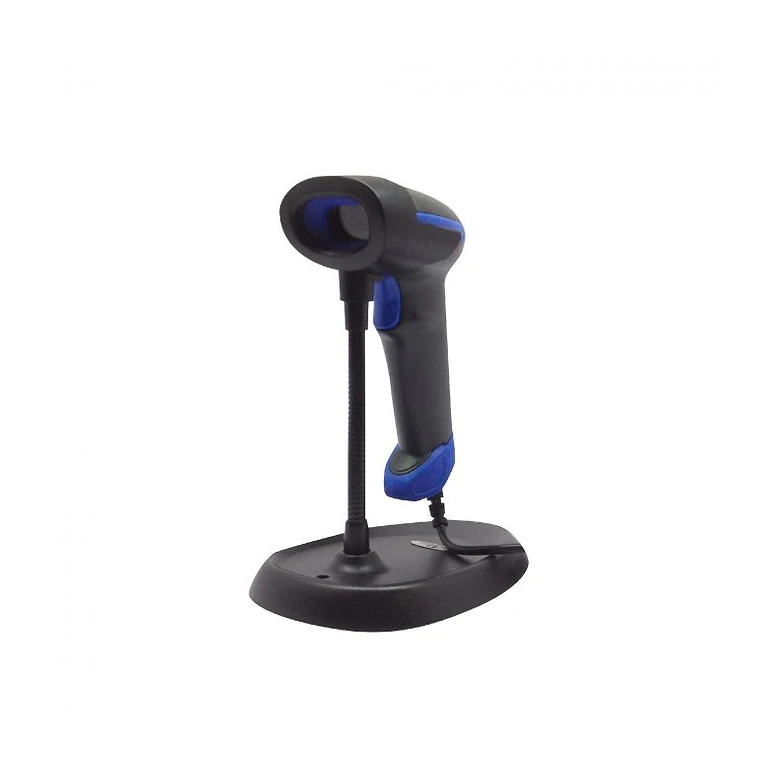

Henex MP 3208 2D Barcode Scanner

Penerangan Produk

The Henex MP 3208 is a versatile 1D & 2D barcode scanner built for high-volume retail and F&B POS environments. Featuring a 640×480 px imager and a 617nm aiming LED, it reads both standard barcodes and QR codes with ease. Available in USB wired and wireless configurations, its ergonomic rubber-grip design with blue accent guards ensures comfortable, all-day use. With a 40–200mm depth of field, 65° elevation angle, and drop-resistant build, it handles the demands of a busy checkout counter.

Ciri Utama

• •1D & 2D barcode scanning (QR codes supported)
• •Available in USB wired and wireless variants
• •617nm LED aiming for precise targeting
• •40–200mm depth of field @ UPC/EAN13
• •640 × 480 px CMOS imager
• •Resolution: more than 5 mil
• •Scan angle: Elevation 65°, Tilt 30°, Declination 55°
• •Field of view: 34° horizontal, 28° vertical
• •Blue LED visual indicator + buzzer
• •Rubber grip ergonomic housing
• •IP drop-resistant build

Waranti

1 Year Warranty

Spesifikasi Teknikal

Image Sensor

640 × 480 px

Light Source

Aiming 617nm LED

Depth of Field

40–200mm @ UPC/EAN13mil PCS=90%

Scan Angle

Elevation 65°, Tilt 30°, Declination 55°

Field of View

34° horizontal, 28° vertical

Resolution

More than 5 mil

Print Contrast

More than 25%

Visual Indicator

Blue LED Lights + Buzzer

Interface

USB (wired) / Wireless (2.4GHz)

Barcode Types

1D & 2D

Input Voltage

5VDC ±10%

Working Current

170mA

Dimensions

9.4cm(W) × 17.3cm(H) × 6.7cm(D)

Weight

220g

Storage Temp

-40°C to 70°C

Operating Temp

0°C to 50°C
